Are you overwhelmed by large datasets and struggling to find the information you need? Managing vast amounts of data can be daunting, but Retool's powerful table component makes it easier than ever. With advanced features like sorting, filtering, pagination, and downloading, you can streamline your data handling process and make swift, informed decisions.
In this blog, we'll guide you through using Retool's table filter to efficiently sift through massive datasets, alleviating the common frustrations of data overload and empowering you to focus on what truly matters.
Importance of Effectively Filtering Large Datasets
Effectively filtering large datasets is crucial for several reasons:
Enhanced Usability:
Users can quickly locate the relevant information they need without sifting through extensive datasets, leading to a more intuitive and user-friendly experience.
Improved Performance:
Applying filters can significantly reduce the amount of data that needs to be processed and displayed, thereby enhancing the performance and speed of applications.
Better Data Analysis:
Filters allow users to focus on specific subsets of data, making it easier to analyze trends, identify patterns, and draw meaningful insights from the data.
Increased Efficiency:
Efficient filtering can streamline workflows by reducing the time and effort required to access and interpret data, leading to quicker decision-making and operational efficiency.
Enhanced Data Quality:
Filtering helps identify and isolate anomalies, outliers, or errors in the data, which can then be addressed to improve the overall quality and reliability of the dataset.
Setting Up Filters in Retool
Step 1: Initial Setup of Retool Table Component
Add a Table Component:
Bind the table to your data source by selecting the appropriate data source in the component settings. This could be a database query or an API endpoint.
Ensure the table is displaying the data correctly.
Configure Table Columns:
Customize the columns in the table to match your data fields.
Set appropriate column names and data types for better readability and functionality.
Step 2: Configuring Filter Components
1.Add a Search Bar:
Drag and drop an Input component onto your Retool canvas.
Label the input appropriately (e.g., "Search by Name").
Bind the value of this input to a temporary state or a variable.
Javascript Example:
const searchTerm = {{ searchInput.value }};
2. Add a Multiselect Component:
Drag and drop a Multiselect component onto your canvas.
Populate the options dynamically from your data or define them statically.
Bind the selected values to a temporary state or variable.
Javascript Example:const selectedOptions = {{ multiselect.value }};
3. Add Date Pickers:
Drag and drop Date Picker components if your data includes date fields.
Label them appropriately (e.g., "Start Date", "End Date").
Bind the selected date range to a temporary state or variable.
Javascript Example:const startDate = {{ startDatePicker.value }};const endDate = {{ endDatePicker.value }};
4. Link Filters to the Table:
Use JavaScript to filter the data in the table based on the values from the filter components.
Add a Query JSON with SQL query to filter your data using the values from your input components.
Example SQL Query:
SELECT *
FROM {{ yourData }}
WHERE
columnName LIKE {{ '%' + searchTerm + '%' }} AND
dateColumn BETWEEN {{ startDate }} AND {{ endDate }} AND
optionColumn IN ({{ selectedOptions }})
5. Update Table Data:
Bind the filtered data query to the table's data property.
You would have understood how to set up a filter in Retool, and now you can learn how to use JavaScript efficiently for filtering in Retool.
Using JavaScript for Filtering in Retool
Implementing efficient filtering logic in JavaScript within Retool can greatly enhance the usability of your application, especially when dealing with large datasets. Here's how you can achieve this:
1. Implementing Filter Logic in JavaScript
You can use JavaScript to write custom filter logic to filter table data dynamically based on user inputs. This involves capturing user input from filter components (like search bars or dropdowns) and using this input to filter the data displayed in the table.
2. Example: Filtering Records Based on Specific Column Values
Let's say you have a table with data, and you want to filter this data based on a search term entered by the user. Here's a javascript example:
// Assuming 'table' is the name of your table component and 'searchInput' is the name of your input component
// Fetching the data from the table component
const data = {{ table.data }};
// Fetching the value from the search input component
const searchTerm = {{ searchInput.value }}.toLowerCase();
// Filtering the data based on the search term
const filteredData = data.filter(record =>
record.columnName.toLowerCase().includes(searchTerm)
);
// Updating the table with the filtered data
{{ table.setData(filteredData) }};
In this example:
table.data retrieves the current data in the table.
searchInput.value retrieves the value from the search input component.
The filter function iterates through each record and checks if the columnName includes the search term.
table.setData(filteredData) updates the table with the filtered results.
3. Efficient JavaScript Filtering for Large Datasets
When working with large datasets, efficient filtering is essential to ensure smooth performance and quick response times. Here are some strategies and techniques to implement efficient JavaScript filtering in Retool:
1. Lazy Loading and Pagination:
Lazy Loading: Load data in chunks as needed rather than all at once. This reduces initial load time and memory usage.
Pagination: Implement pagination to handle large datasets by displaying only a subset of data at a time. Retool supports pagination out of the box.
Javascript Example:
const pageSize = 50; // Number of records per page
const currentPage = {{ currentPageNumber }}; // Current page number from pagination control
const paginatedData = data.slice((currentPage - 1) pageSize, currentPage pageSize);
2. Debouncing Input Filters:
Debouncing: This method reduces the number of filter operations by delaying the execution of the filter function until the user has stopped typing for a specified time. It minimizes unnecessary computations.
3. Efficient Data Structures:
Indexed Structures: Use data structures like indexed arrays or objects to optimize search and filter operations. This can significantly reduce the time complexity of filtering operations.
Javascript Example:
const filteredData = Array.from(dataMap.values()).filter(record => record.name.toLowerCase().includes(searchTerm));
4. Client-Side vs. Server-Side Filtering:
Client-Side Filtering: Suitable for small to moderately-sized datasets that can be handled in the browser.
Server-Side Filtering: For very large datasets, filtering is performed on the server side to reduce the amount of data sent to the client. This approach leverages the server’s processing power and minimizes client-side workload.
Javascript Example:
// Server-side query example
const serverQuery = `
SELECT *
FROM dataset
WHERE name LIKE '%${searchTerm}%' AND date BETWEEN '${startDate}' AND '${endDate}'
`;
5. Optimized Search Algorithms:
Binary Search: Use binary search to improve search efficiency for sorted datasets.
Trie Data Structure: For text filtering, consider using a Trie data structure to optimize prefix-based searches.
By leveraging these strategies, you can enhance the performance of filtering large datasets in Retool, ensuring a responsive and efficient user experience.
Now that you have learned how to Implement custom filter logic directly in JavaScript, allowing for advanced and flexible data manipulation, the next step is to learn how to use Retool’s built-in event handlers to trigger predefined filtering actions and interact with the data in the table.
Event Handlers for Filtering in Retool
Event handlers are essential in making your applications interactive and responsive. In Retool, event handlers can trigger filtering actions, allowing users to dynamically interact with data displayed in tables. Here’s how you can set up event handlers for filtering:
1. Using Event Handlers to Trigger Filtering Actions
Event handlers can be set up to trigger actions such as filtering data based on user input. For instance, you can use event handlers to clear filters, set new filters, or update existing filters when certain events occur, such as clicking a button or changing a selection.
2. Example: Using Button Event Handlers to Clear and Set Filters
Step-by-Step Guide
Initial Setup of Retool Table Component:
Ensure you have a table component set up in Retool displaying your dataset.
Adding Filter Components:
Add input fields such as text inputs, date pickers, or dropdowns to act as filters.
For example, add a text input component for searching by name and a date picker for filtering by date range.
Setting Up Event Handlers:
Add buttons to trigger the filter actions, such as "Apply Filter" and "Clear Filter" buttons.
Implementing Filter Logic:
Write JavaScript functions to handle the filtering logic based on the inputs from the filter components.
Difference between using Javascript and Event Handlers for Filtering
Aspect | JavaScript Filtering | Event Handlers for Filtering |
Flexibility | High, allows for complex and customized filtering logic | Moderate, best for straightforward filtering actions |
Ease of Use | Requires writing custom code | Easy to set up using Retool’s UI components |
Integration | Can integrate advanced data processing steps | Integrates directly with user actions (e.g., buttons) |
Performance | It may affect performance with very large datasets | Generally, good performance depends on UI components |
Customization | High, can tailor filtering rules to specific needs | Limited to predefined actions linked to UI events |
You can handle data that fits into single criteria using Javascript and Event Handlers, but how do you filter your data if it falls under multiple criteria? This is where the multi-select filters come to your rescue.
Handling Multi-Select Filters
Multi-select filters allow users to select multiple values from a list of options to filter data. This functionality is particularly useful when users need to view data that meets multiple criteria simultaneously. Multi-select filters enhance data analysis by providing flexibility and granularity in how data is viewed and interpreted.
1. Using Multi-Select Components to Filter Data:
Add a Multi-Select Component:
Drag and drop a multi-select component onto your Retool interface.
Configure the component to display the list of options users can choose from.
Configure the Data Source:
Ensure that the multi-select component is linked to the appropriate data source. This data source should contain a list of values that users can select from.
Bind the Multi-Select Values:
Bind the selected values from the multi-select component to a variable or state that will be used to filter the table component data.
2. Setting Filters Using Multi-Value Selections:
Write the Filter Logic:
Implement the filter logic using JavaScript to filter the data based on the selected values from the multi-select component.
2. Apply the Filter:
Ensure that the filtered data is set to the table component to display only the records that match the selected criteria.
3. Common Issues and Troubleshooting Multi-Select Filters
1. No Data Displayed After Filtering:
Issue: After applying the multi-select filter, the table displays no data even though there should be matching records.
Troubleshooting Steps:
Check Filter Logic: Ensure the filtering logic matches the selected values from the multi-select component.
Verify Data Binding: Confirm that the multi-select component’s selected values are correctly bound to the filtering logic.
Data Source Validation: Validate that the source contains the expected data and is correctly integrated with the table component.
2. Multi-Select Values Not Updating:
Issue: The selected values in the multi-select component do not reflect changes or updates.
Troubleshooting Steps:
Component State: Ensure the multi-select component's state is correctly updated when changes are made.
Reactivity: Verify that the data binding is reactive, meaning it updates the table component whenever the multi-select values change.
Event Handling: Ensure that any event handlers correctly trigger the filtering logic when values change.
3. Performance Issues with Large Datasets:
Issue: Filtering large datasets using multi-select components causes performance degradation or slow response times.
Troubleshooting Steps:
Efficient Filtering: Optimize the filtering logic to handle large datasets efficiently. Use methods like map, filter, and reduce to process data quickly.
Pagination: Implement pagination to load and display data in chunks rather than all at once.
Indexing: Ensure the data source is indexed properly to speed up query performance.
4. Incorrect Filter Results:
Issue: The table displays incorrect results after the filter is applied.
Troubleshooting Steps:
Logic Verification: Double-check the filter logic to ensure it correctly includes or excludes items based on the selected values.
Data Consistency: Ensure the data format in the multi-select component matches the data format in the table’s dataset.
Case Sensitivity: Consider case sensitivity in the filter logic and make adjustments if necessary.
5. Multi-Select Component Not Rendering Properly:
Issue: The multi-select component does not display options or render correctly.
Troubleshooting Steps:
Component Configuration: Verify that the multi-select component is correctly configured with the appropriate options and data source.
Dependencies: Ensure all necessary dependencies and libraries are loaded and up-to-date.
Styling Conflicts: Check for any CSS or styling conflicts that might prevent the component from rendering correctly.
Effectively using multi-select filters in Retool can enhance the user experience by allowing dynamic data interaction. By understanding common issues and their troubleshooting steps, you can ensure that your filters work smoothly and efficiently, providing accurate and quick data views.
If you encounter persistent problems, contact Toolpioneers for expert advice.
Up to this point, you've explored how to filter data that meets both single and multiple criteria sets. Now, in the following section, we will delve into advanced techniques for filtering complex datasets in Retool, equipping you with the tools to manage even the most intricate data scenarios with ease.

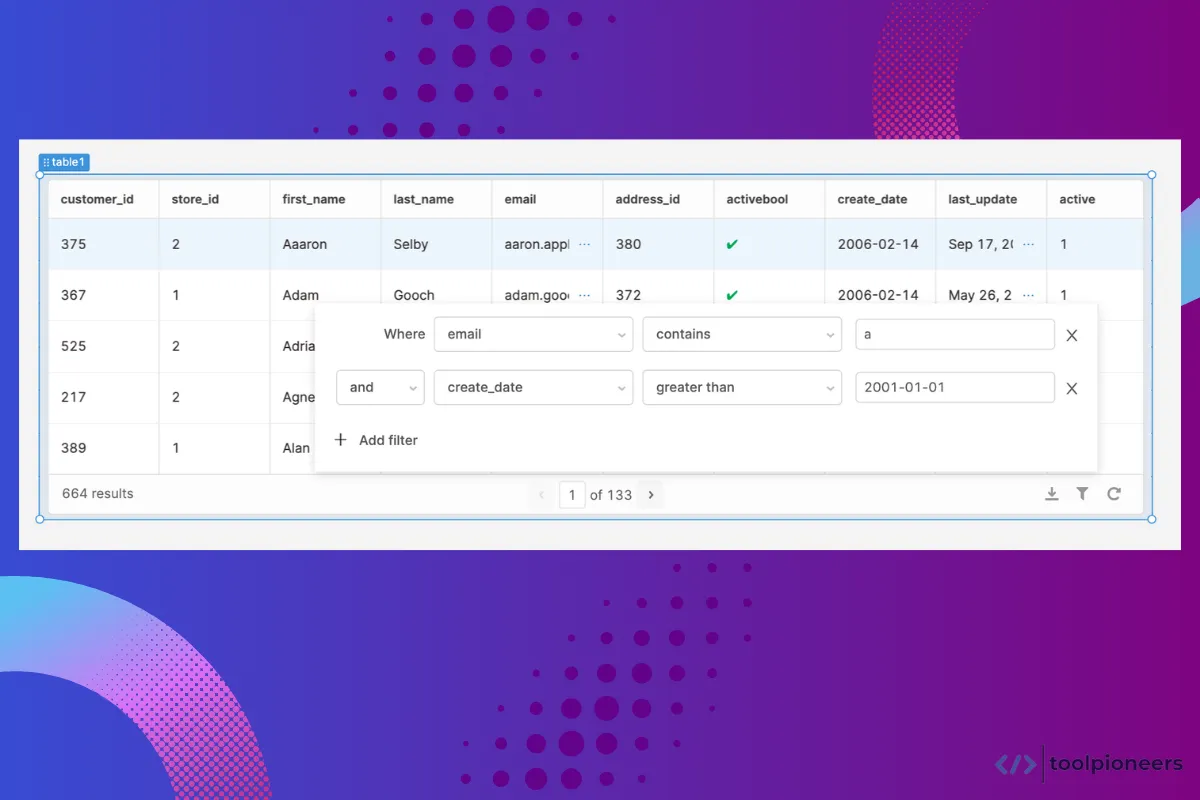

Advanced Filtering with setFilterStack Method in Retool
The setFilterStack method in Retool provides advanced filtering capabilities for handling complex datasets. This API allows for combining multiple filters and managing them programmatically, offering a more dynamic and robust approach than basic JavaScript or event handler filtering.
Key Features of setFilterStack API:
Advanced Filtering: Supports complex, multi-condition filters.
Programmatic Management: Filters can be dynamically adjusted based on various conditions.
Context-Aware: Ensures accurate application within the data structure and relationships.
1. Overview of the setFilterStack Method
The setFilterStack method is used to apply multiple filters to a Retool table. This method enables the creation and management of complex filter conditions that can be adjusted dynamically based on user interactions or other logic within the application.
Key Features:
Combining Multiple Filters: Allows the application of multiple filter conditions simultaneously.
Dynamic Filter Management: Filters can be added, modified, or removed programmatically.
Context Awareness: Filters are applied within the context of the data structure, ensuring relevant and accurate results.
2. Examples of Combining Multiple Filters
Example 1: Filtering by Multiple Columns
table.setFilterStack([
{
column: 'status',
operator: 'equals',
value: 'Active'
},
{
column: 'age',
operator: 'greater_than',
value: 30
}
]);
This example filters the table to show only rows where the status is 'Active' and the age is greater than 30.
Example 2: Combining AND/OR Conditions
table.setFilterStack([
{
column: 'status',
operator: 'equals',
value: 'Active'
},
{
column: 'age',
operator: 'greater_than',
value: 30,
logic: 'or'
},
{
column: 'department',
operator: 'equals',
value: 'Sales',
logic: 'and'
}
]);
In this example, the filter stack combines conditions using both AND and OR logic, providing more nuanced filtering capabilities.
3. Managing Filter Stacks and Understanding the Context of API Calls
Adding Filters:
To add a new filter to the stack, you can modify the existing stack and reapply it.
let currentFilters = table.getFilterStack();
currentFilters.push({
column: 'salary',
operator: 'greater_than',
value: 50000
});
table.setFilterStack(currentFilters);
Removing Filters:
You can also remove specific filters by filtering out conditions from the current stack.
let currentFilters = table.getFilterStack();
currentFilters = currentFilters.filter(filter => filter.column !== 'salary');
table.setFilterStack(currentFilters);
Understanding Context:
Filters applied using setFilterStack respect the data schema and relationships within the dataset, ensuring accurate and relevant results. This is particularly useful in complex applications where data integrity and consistency are critical.
You have learned how to handle complex data sets, and the next step is to understand how to clear and reset filters in Retool for effective data handling.
Clearing and Resetting Filters in Retool
Managing filters effectively in Retool is crucial for maintaining a smooth and efficient workflow, especially when dealing with large datasets. Clearing and resetting data in Retool can enhance usability, performance optimization, accurate data analysis, improved user experience, and streamlined workflows.
Here’s how you can clear and reset filters using different methods.
1. Methods for Clearing Individual Filters
Clearing individual filters can help maintain focus on specific data subsets without completely resetting the entire filter stack.
Example: Clear a Specific Filter:
let currentFilters = table.getFilterStack();
currentFilters = currentFilters.filter(filter => filter.column !== 'status');
table.setFilterStack(currentFilters);
In this example, the filter on the status column is removed while keeping other filters intact.
2. Implementing Clear Filters for Toggling Views
Toggling between different views can be achieved by dynamically setting and clearing filters based on user actions.
Example: Toggle Filter View:
toggleButton.onClick(() => {
if (currentView === 'all') {
table.setFilterStack([
{
column: 'status',
operator: 'equals',
value: 'Active'
}
]);
currentView = 'active';
} else {
table.setFilterStack([]);
currentView = 'all';
}
});
In this example, clicking the toggleButton switches between viewing all records and only active records.
3. Using clearFilterStack for Comprehensive Reset
The clearFilterStack method is used to reset all filters applied to a table, bringing the dataset back to its original, unfiltered state.
Example: Clear All Filters:
clearButton.onClick(() => {
table.clearFilterStack();
});
Clicking the clearButton will remove all filters and display the full dataset.
Best Practices and Tips for Using Filters in Retool
1. Ensuring Efficient Filter Performance
Optimize Data Queries:
Use SQL queries or API endpoints to handle filtering server-side before data reaches the client.
Ensure database indexes support the filtering operations to speed up query execution.
Limit Data Load:
Implement pagination or lazy loading to handle large datasets without overwhelming the system.
Use efficient data structures and algorithms to manage and process data.
Reduce Redundant Filters:
Combine similar filter conditions to minimize the number of filter operations.
Avoid applying multiple filters that overlap or conflict.
2. Debugging and Resolving Common Filter Issues
Consistent Data Formats:
Ensure data types and formats are consistent across the dataset to avoid filtering mismatches.
Use data validation and transformation tools to standardize data input.
Error Handling:
Implement error handling for filter operations, providing clear messages and fallback options.
Use logging to track filter applications and identify where issues arise.
Test Filters Thoroughly:
Create test cases for different filter scenarios to ensure they work as expected.
Use automated testing tools to validate filter logic and performance.
3. Utilizing Community Feedback and Resources
Engage with the Community:
Participate in forums and discussion groups related to Retool and data filtering.
Share experiences and solutions to common filtering challenges.
Leverage Documentation and Tutorials:
Refer to Retool’s official documentation for up-to-date best practices and examples.
Explore tutorials and case studies to understand advanced filtering techniques.
Open Source Contributions:
Contribute to open-source projects or use community-created plugins to enhance filter functionalities.
Stay informed about updates and improvements shared by the community.
Adhering to these best practices and leveraging community resources can ensure that your filter implementations in Retool are efficient, effective, and user-friendly.
Conclusion
Effectively using filter components in Retool enhances data management and user experience by allowing for precise data extraction and analysis. Key methods include initializing Retool table components, configuring various filter types, leveraging JavaScript for dynamic filtering, and utilizing advanced features like the setFilterStack API. Users can maintain an organized and user-friendly interface by clearing and resetting filters.
Experimenting with different filter settings and continuously improving their implementation will help you maximize Retool's capabilities. Engage with the community and utilize available resources to troubleshoot issues and optimize performance.
You can also Partner with Toolpioneers for expert guidance and support in leveraging Retool for your system development needs. Toolpioneers can help you streamline workflows, ensure high-quality applications, and stay competitive in the market.
Start your journey to efficient system development with Retool by joining hands with Toolpioneers today!
